SSS.8.1.9 - Suppressed Bolt Action Rifle Hazards - Precision Armament TiTrex 300 Silencer Hazard Map Brief
/Precision Armament TiTrex 300 on a 20-in Barrel .308 Bolt Action Rifle - Hazard Map
This Silencer Hazard Map Brief documents the free field blast overpressure hazards from the Precision Armament TiTrex 300 rifle silencer fielded on a 20-in barrel .308 bolt action rifle firing M80 149gr 7.62 NATO ammunition, as evaluated in technical Report 6.212 and as tabulated in record number 7.1.239 in the Rankings.
The average Suppression Rating hazard contours at 1.6 m silencer end cap elevation from the instrumented blast test of the TiTrex 300 silencer computed with the PEW-SOFT HD Blast Hazard Prediction Tool are shown in Figure 1. The Suppression Rating hazard scale is shown in Figure 2. Ground-truth anchored Suppression Ratings from the technical report are annotated 1.0 m left of the end cap (SR_muzzle) and 6 inches right of the shooter’s right ear (SR_ear). Computational parameters and blast overpressure hazard field observations are provided below.
8.1.9.1 PEW-SOFT HD Computational Model Parameters
PEW-SOFT HD code Version 2.2.6 Alpha was used.
Contour elevation is 1.6 m above grade. No reflecting surfaces, other than the ground, are present in the model.
Grid resolution is 0.076 m (3 in).
The average bolt action jet stability index sigma_b of the silencer is 0.28.
8.1.9.2 Precision Armament TiTrex 300 Suppression Hazard Map Observations:
The Precision Armament TiTrex 300 silencer is a conventional design in a gross sense, but includes highly optimized baffle geometry; its performance for its length is relatively high. Blast load input into the silencer is relatively high amplitude from the 20-in rifle barrel. Blast load output from the silencer is relatively controlled, with moderately stable jetting.
Forward field severity is relatively low compared with that from competing 7.62 NATO systems of similar size. Severity in the rear field near the operator is low. Bolt action weapon system operator hazards are lower for this combustion regime than they are with a semiautomatic weapon system (e.g. SR-25). Forward field dispersion from silencer jetting is relatively controlled as a result of the relatively high Omega Metric (ref. 6.212).
The hazard field from the TiTrex 300 system is consistent, from shot to shot.

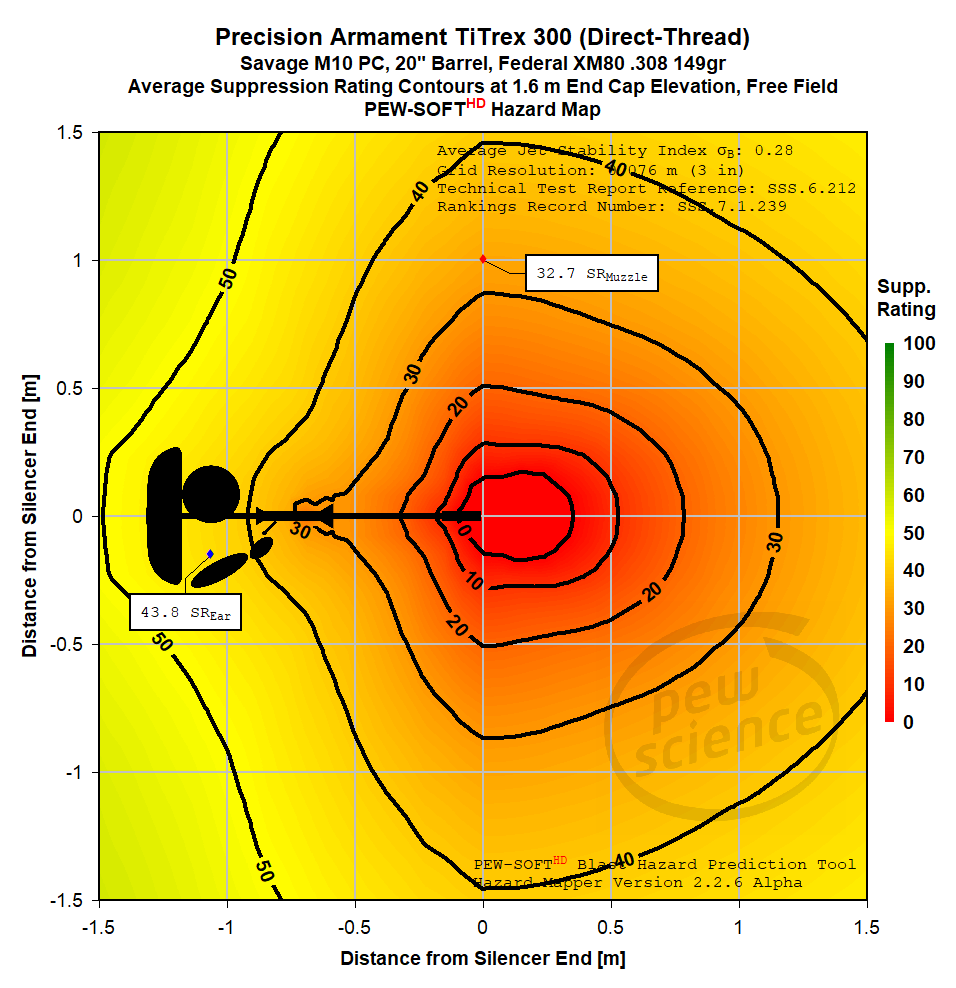

fig 1. Precision Armament TiTrex 300 20-in barrel .308 Bolt-Action Free Field Hazard Map Produced by PEW-SOFT HD Blast Hazard Prediction Tool using PEW Science Test Data
Fig 2. PEW Science Suppression Rating Scale
